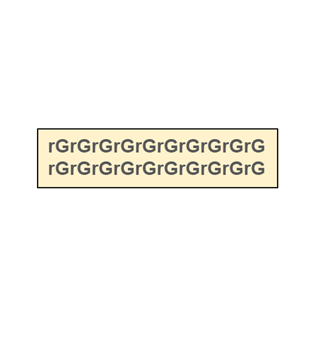

Homopolymeric Guanosine repeat of 20 nucleotides
rG20 is a 20-nucleotide homopolymeric RNA consisting entirely of guanosine residues and bearing a 5' triphosphate. As a continuous poly(G) RNA stretch, rG20 has a strong propensity to form stable G-quadruplex (G4) structures, four-stranded non-canonical RNA secondary structures stabilized by stacks of G-quartets, in which each quartet is a planar arrangement of four guanines linked by Hoogsteen hydrogen bonds and coordinated by monovalent cations such as K⁺. RNA G-quadruplexes are generally more thermally stable and compact than their DNA counterparts, owing to the 2'-hydroxyl group of the ribose sugar and the additional water-mediated contacts within the groove. The 5' triphosphate renders rG20 a potent innate immune activator: it is recognized by the cytosolic pattern recognition receptor RIG-I (retinoic acid-inducible gene I), which senses 5'-triphosphate single-stranded and double-stranded RNA to trigger type I interferon and proinflammatory cytokine responses. rG20 therefore serves as both a structural model for RNA G-quadruplex formation and a defined molecular tool for activating and studying innate immune signaling pathways.
Applications -
1) Lyu, K., Chow, E. Y.-C., Mou, X., Chan, T.-F., & Kwok, C. K. (2021). "RNA G-quadruplexes (rG4s): genomics and biological functions." Nucleic Acids Research, 49(10), 5426–5450
2) Hornung, V., et al. (2006). "5'-Triphosphate RNA is the ligand for RIG-I." Science, 314(5801), 994–997
3) Tosoni, E., et al. (2015). "Inhibition of retroviral production by RNA G-quadruplexes suggests a novel target for antiviral therapy." Biochemistry, 54(3), 691–693
4) Collie, G. W., Parkinson, G. N., Neidle, S., Bhatt, A., Jones, F., & Reszka, A. (2010). "Crystallographic and modelling studies of telomeric RNA G-quadruplex structures." Nucleic Acids Research, 38(16), 5569–5580
Cisterna's off-the-shelf RNAs are validated and ready to order through our quick quote system. Simply follow these steps: Step 1 (Find your RNA) If you already know what you need, select your desired RNA directly from the main page. If you'd like to learn more first, browse by category, click on the RNA name to view its product page, and explore usage examples and references before ordering. Step 2 (Add to Cart) Choose your preferred 'Quality', 'Amount', and 'Quantity', then click 'Add to Cart'. Repeat for any additional items. Step 3 (Get a Quote) When all items are in your cart, click 'Get a Quote'. Fill in your name, professional email, and academic or business address. Please note that personal email addresses and home addresses will not be accepted. Step 4 (Save your Quote) Once your information is complete, you can download your quote as a PDF for your records. Step 5 (Checkout) Click 'Continue to Checkout' to proceed to the final order page. If your institution requires it, you can enter an optional Purchase Order (PO) number here. Review your order and click 'Place an Order'. That's it! We'll take it from here. Your RNA will be synthesized and shipped as quickly as possible. Invoices are sent electronically upon confirmation of delivery, and all invoices are issued on Net30 terms.
PRIME is Cisterna's core RNA production platform, capable of synthesizing all RNA types including mRNA, tRNA, siRNA, sgRNA, aptamers, and more. The PRIME platform is engineered to drastically reduce product-related impurities such as dsRNA, short-truncated products, abortive transcripts, and DNA:RNA hybrids, all commonly generated in standard in vitro transcription. The result is consistently high-quality RNAs that are fully functional and well-suited for most downstream applications such as X-ray crystallography, Cryo-EM, tRNA aminoacylation and protein expression.
Both PRIME and SPECC reflect Cisterna’s commitment to producing high-quality RNA, but they are designed to serve different needs. PRIME is Cisterna’s standard production platform and is applicable to all RNA types. It delivers high-purity RNA suitable for a wide range of applications, from structural and biochemical studies to robust protein expression. For most research applications, PRIME offers excellent performance and exceptional value at an affordable price point. SPECC (SPEcific Capture and Cleavage) is Cisterna’s flagship purification system and is currently available for mRNA only. It takes purity a step further by selectively isolating full-length mRNA transcripts, enabling near-HPLC-level purity. SPECC is the ideal choice when the highest possible mRNA quality is desired, such as in rigorous quantitative studies, high-dose applications, or therapeutic development.
